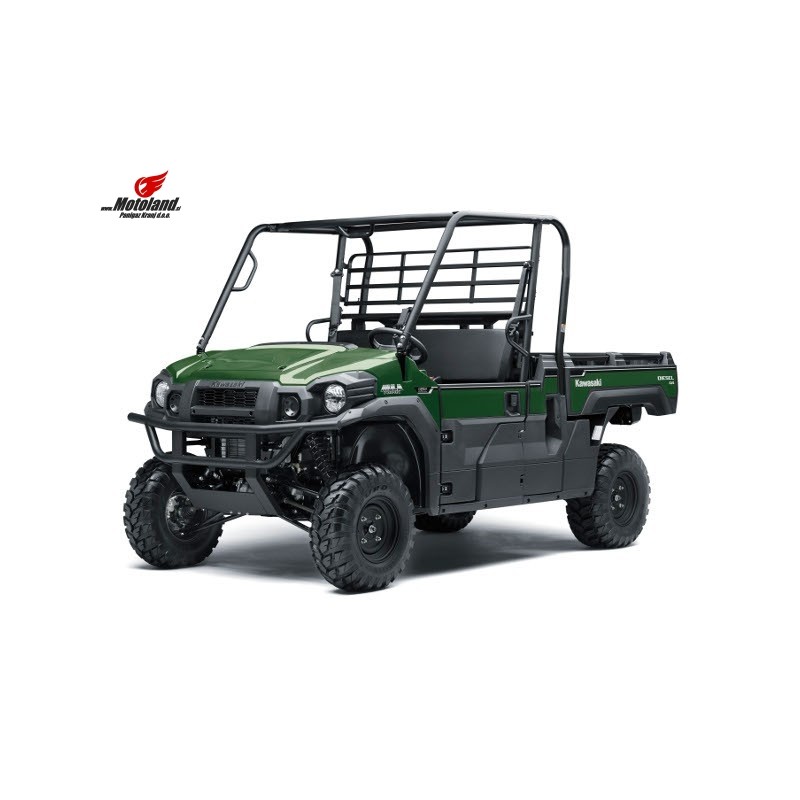

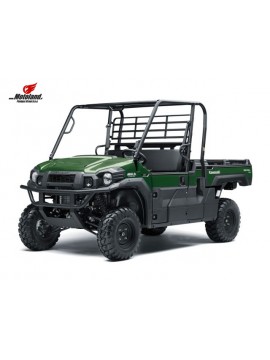

KL Pro - DX Diesel EPS
€23,334.00
Tax included
:
There are not enough products in stock
Engine
- Engine type
- Liquid-cooled, 4-stroke Diesel, 3-cylinder OHV
- Compression ratio
- 23.5:1
- Bore x stroke
- 74 x 77 mm
- Displacement
- 993 cm³
- Fuel system
- In-line injection pump
- Starting System
- Electric
- Combustion Chamber
- Swirl chamber
- Lubrication
- Forced lubrication, wet sump
Performance & Transmission
- Maximum torque
- 52.1 N•m {5.3 kgf•m} / 2,400 rpm
- Maximum power
- 17.8 kW {24 PS} / 3,600 rpm
- Transmission
- CVT, 2-speed auto, reverse
- Primary Reduction Ratio
- 3.334 ~ 0.756 (belt converter)
- Primary drive
- Belt converter
- Gear Ratio Forward
- High:1.952 (34/33 x 36/19) - Low:3.876 (45/22 x 36/19)
- Gear Ratio Reverse
- 3.009 (27/17 x 36/19)
- Gear Ratio Reverse
- 3.009 (27/17 x 36/19)
- Final drive
- 2WD / 4WD, shaft, Dual-Mode Differential
- Final reduction ratio
- Front:6.382 (31/17 x 35/10) - Rear:6.245 (31/21 x 55/13)
Brakes & Suspension
- Parking Brake
- Dual discs (mechanical)
- Brakes, front
- Dual 212 mm discs with 2-piston calipers
- Brakes, rear
- Dual 212 mm discs with 1-piston calipers
- Suspension, front
- Double wishbone
- Suspension, rear
- Double wishbone
Frame & Dimensions
- Frame type
- Ladder type, tubular steel
- Wheel travel front
- 222 mm
- Wheel travel rear
- (left) 217 mm , (right) 220 mm
- Tyre, front
- 26 x 9.00-12 4PR
- Tyre, rear
- 26 x 11.00-12 4PR
- L x W x H
- 3,385 x 1,625 x 1,965 mm
- Wheelbase
- 2,345 mm
- Ground clearance
- 265 mm
- Fuel capacity
- 30 litres
- Seat height
- 885 mm
- Curb mass
- 842 kg
