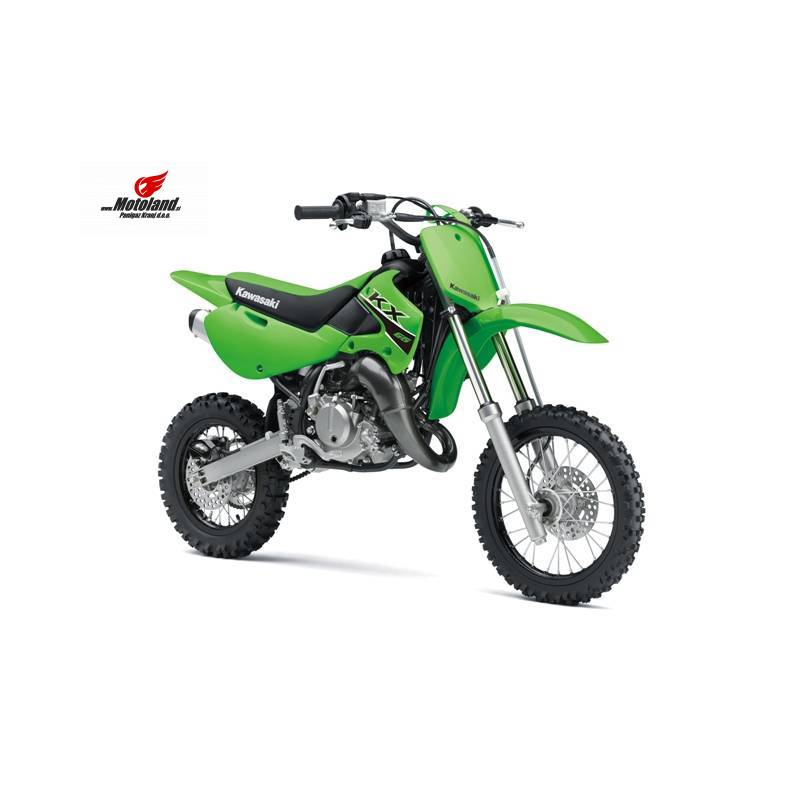

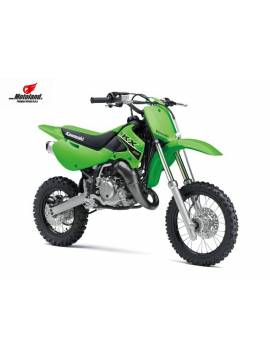

KX 65

€4,280.00
Tax included
: Ready to ship in 1-7 working days
Ask a Question
KX 65KX 65€4,280.00

Your Query is sent.

  •     *Required Fields

Loading

Send to a friend Print
Review:
Engine
Engine
Engine type
Liquid-cooled, 2-stroke Single
Compression ratio
8.4:1
Valve system
Piston reed valve
Bore x stroke
44.5 x 41.6 mm
Displacement
64 cm³
Fuel system
Carburettor: Mikuni VM24SS
Ignition
Electric CDI
Starting System
Primary Kick
Lubrication
Petrol mix
Gear
Performance & Transmission
Transmission
6-speed, return
Clutch
Wet multi-disc
Primary Reduction Ratio
3.500 (77/22)
Gear Ratios 1st
2.846 (37/13)
Gear Ratios 2nd
2.125 (34/16)
Gear Ratios 3rd
1.722 (31/18)
Gear Ratios 4th
1.428 (30/21)
Gear Ratios 5th
1.217 (28/23)
Gear Ratios 6th
1.083 (26/24)
Final drive
Chain
Final reduction ratio
3.615 (47/13)
Suspensions
Brakes & Suspension
Brakes, front
Single 180 mm disc. Caliper: Single-piston
Brakes, rear
Single 180 mm disc. Caliper: Single-piston
Suspension, front
33 mm telescopic fork with 4-way rebound damping
Suspension, rear
Bottom-Link Uni-Trak with gas-charged shock, adjustable preload and stepless rebound damping

Dimensions
Frame & Dimensions
Frame type
Double-cradle, high-tensile steel
Trail
60 mm
Wheel travel front
210 mm
Wheel travel rear
240 mm
Tyre, front
60/100-14 30M
Tyre, rear
80/100-12 41M
Steering angle L/R
40° / 40°
L x W x H
1,590 x 760 x 955 mm
Wheelbase
1,120 mm
Ground clearance
305 mm
Fuel capacity
3.8 litres
Seat height
760 mm
Curb Mass.
60 kg

Specific References

No customer reviews for the moment.
