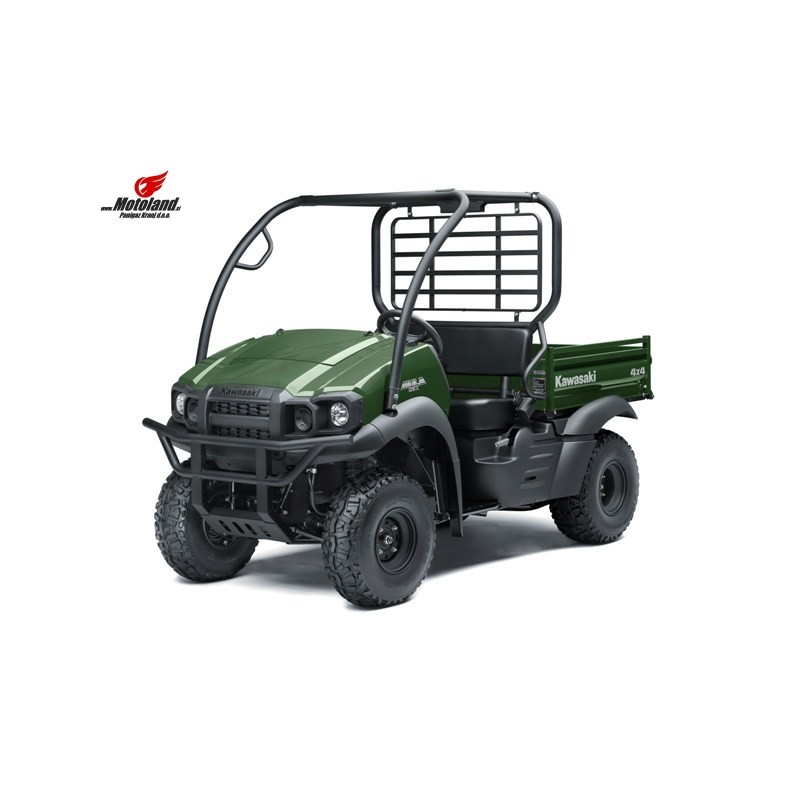

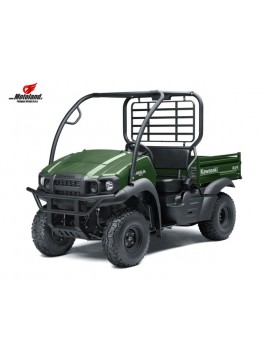

KL SX 4x4 FI
€13,110.00
Tax included
:
There are not enough products in stock
Engine
- Engine type
- Air-cooled, OHV, 4-stroke single
- Compression ratio
- 8.6:1
- Bore x stroke
- 82 x 76 mm
- Displacement
- 401 cm³
- Fuel system
- Carburettor: Nikki 6C1026
- Ignition
- Magneto & transistor
- Starting System
- Electric
- Lubrication
- Forced lubrication, wet sump
Performance & Transmission
- Maximum torque
- 29.7 N•m {3 kgf•m} / 2,400 rpm
- Maximum power
- 9.9 kW {13.5 PS} / 4,000 rpm
- Transmission
- CVT, 2 speed auto, reverse
- Primary Reduction Ratio
- 3.653 ~ 0.794 (belt converter)
- Primary drive
- Belt drive torque converter
- Gear Ratio Forward
- 2.916 (35/24 x 36/18)
- Gear Ratio Reverse
- 3.750 (30/16 x 36/18)
- Final Reduction Ratio
- 4.000 (64/16)
- Final drive
- Shaft 2WD/4WD
Brakes & Suspension
- Parking Brake
- Mechanical internal expansion type on rear wheels
- Brakes, front
- Dual hydraulic drums
- Brakes, rear
- Dual hydraulic drums
- Suspension, front
- Independent, MacPherson strut
- Suspension, rear
- Unit swing
Frame & Dimensions
- Frame type
- Ladder type, tubular steel
- Wheel travel front
- 78 mm
- Wheel travel rear
- 79 mm
- Tyre, front
- 24 x 9-10
- Tyre, rear
- 24 x 11-10
- Steering angle L/R
- 43o (IN) / 38o (OUT),
- L x W x H
- 2,710 x 1,335 x 1,800 mm
- Wheelbase
- 1,780 mm
- Ground clearance
- 170 mm
- Fuel capacity
- 16 litres
- Seat height
- 780 mm
- Curb mass
- 468 kg
