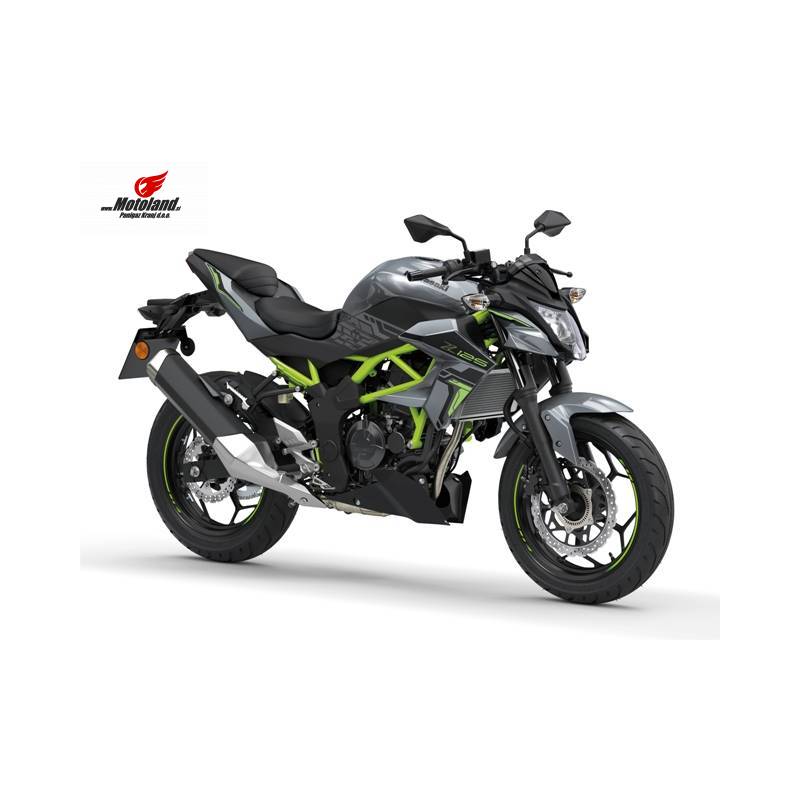

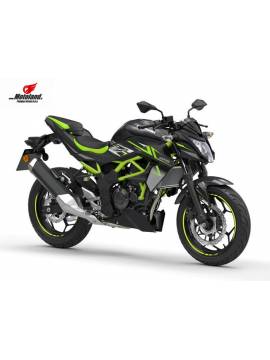

Z 125
€4,724.00
Tax included
:
Ready to ship in 1-7 working days
Engine
- Engine type
- Liquid-cooled, 4-stroke Single
- Compression ratio
- 11.7:1
- Valve system
- DOHC, 4 valves
- Bore x stroke
- 58 x 47.2 mm
- Displacement
- 125 cm³
- Displacement
- 125 cm³
- Fuel system
- Fuel injection: Ø 28 mm x 1
- Starting System
- Electric
- Lubrication
- Forced lubrication, wet sump
Performance & Transmission
- Maximum torque
- 11.7 N•m {1.2 kgf•m} / 7,700 rpm
- Maximum power
- 11 kW {15 PS} / 10,000 rpm
- CO2 emission
- 61 g/km
- Transmission
- 6-speed, return
- Clutch
- Wet multi-disc
- Primary Reduction Ratio
- 2.966 (86/29)
- Gear Ratios 1st
- 2.833 (34/12)
- Gear Ratios 2nd
- 1.875 (30/16)
- Gear Ratios 3rd
- 1.444 (26/18)
- Gear Ratios 4th
- 1.208 (29/24)
- Gear Ratios 5th
- 1.056 (19/18)
- Gear Ratios 6th
- 0.962 (25/26)
- Final drive
- Chain
- Final reduction ratio
- 3.500 (56/16)
Brakes & Suspension
- Brakes, front
- Single 290 mm petal disc. Caliper: Dual piston
- Brakes, rear
- Single 220 mm petal disc. Caliper: Dual piston
- Suspension, front
- 37 mm telescopic fork
- Suspension, rear
- Uni-Trak, gas-charged shock with adjustable preload
Frame & Dimensions
- Frame type
- Tubular diamond, steel
- Trail
- 90 mm
- Wheel travel front
- 110 mm
- Wheel travel rear
- 120 mm
- Tyre, front
- 100/80-17M/C 52S
- Tyre, rear
- 130/70-17M/C 62S
- Tyre, rear
- 130/70-17M/C 62S
- L x W x H
- 1,935 x 740 x 1,015 mm
- Wheelbase
- 1,330 mm
- Ground clearance
- 185 mm
- Fuel capacity
- 11 litres
- Seat height
- 815 mm
- Curb mass
- 147 kg
